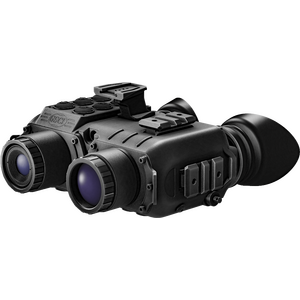

Tuotteen kuvausLightweight Fusion Goggles QUADRO-G
The QUADRO-G is the new augmented vision goggles for tactical surveillance and observation at short- and medium-range distances.
Along with selecting between visible/near-infrared and far-infrared (thermal) channels individually, GSCI’s Unique Patented technology allows to produce and display real-time, delay-free fusion image that superimposes all ranges of the spectrum from its sensors to successfully detect any target and defy poor lighting or weather conditions. Wide field of view allows for better situation awareness.
The unit is small and lightweight, and yet made of a hard-anodized aluminum for added strength and shock resistance. The unit is compatible with most head gears and helmet mounts for hands-free operation.
KEY FEATURES
¨ 100% Target Detection Capability
¨ Dual-Eye Observation
¨ Multi-Mode 24/7 Operation
¨ High Situational Awareness
¨ Auto-NUC: No Calibration Needed
¨ Universal Power Solution
MAIN APPLICATIONS
¨ Defence
¨ Security
¨ Border Patrol
¨ Special Forces
¨ Surveillance
¨ Reconnaissance
FACE RECOGNITION TECHNOLOGY READY.
The QUADRO lineup is designed utilizing GSCI’s patented technology that produces and displays real-time, delay free fusion image that superimposes both spectral ranges covered by its sensors. Besides a number of unique features, this device combines consequential technologies to produce an image allowing for facial recognition in low light or night conditions. The data recorded can be used for enhanced real-time biometrics and post mission forensic analysis for covert nighttime operations. Using this type of technology for recognition at nighttime has revolutionized warfare as it has proven extremely beneficial for informing a soldier that the individual is someone of interest and reducing risk of misidentification.
Fused images can be used in combination with biometric face databases/watch lists that only contain visible face imagery. The fusion technology allows taking advantage of both technologies and combining thermal and visible imagery to jointly preserve the shape of the entire face and appearance of the local identifying details.
Detecting objects that were difficult, or impossible, to see using current state-of-the-art thermal cameras was the main objective behind the design of the QUADRO systems, and all the functions can be done with a simple press of a button.
Additional Features such as Digital Edge Detection and Digital Detail Enhancement make Face Recognition even more effective
OPTICAL PARAMETERS
Optical Magnification - 1X
Field of View - 24.5°x18.5°
Focusing Range - 0.5m .. Infinity
Eyepiece - Dual
Eyerelief - Min. 20mm
SYSTEM PARAMETERS: CAPABILITIES AND SPECIAL FEATURES
Digital Passive Stadiametric Rangefinder (SRF) - Yes
Digital Detail Enhancement Feature (DDE) - Yes
Digital Edge Detection Feature (DED) - Yes
Wide Dynamic Range Feature (WDR) - Yes
Stow Safety Feature (SSF) - Yes
Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display) - Optional: 3-Axis Sensors - Magnetometer, Accelerometer and Gyroscope
Integrated Compass - Optional
Pitch / Roll / Azimuth Indications - Optional
Power Saving Mode - Yes
Real-Time Date-Time Stamp - Yes: Simplified, Extended, DTG Formats
Digital Video Recorder with Real-Time Stamp - Optional: Comes with Removable 32GB microSD Card
Detection Capability: Man (1.7x0.5m) / NATO Target (2.3x2.3m) - 830m / 1130m
Hand-Held Configuration - Yes
Tripod-Mountable - Yes
User Profiles (Configurable) - Yes: 8
Automatic/Manual Pixel Masking - Yes
Reset to Factory Defaults - Yes
External Video Feed Protection - Yes
Automatic Power Down Control - User-Configurable: 10 .. 60 minutes of inactivity
THERMAL (LWIR)CHANNEL
FPA Type - Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)
FPA Resolution and Pitch - 640x480, 17μm
FPA Sensitivity (NETD) - <50mK
FPA Refresh Rate - 50Hz
Digital Zoom - 1X, 2X, 4X
Imaging Modes - Monochrome (White-Hot / Black-Hot) and 8 Colour Palettes
DAY/NIGHT (VNIR) CHANNEL
Sensor Type - High-Performance CCD
Sensor Size - 1/3”
Resolution - 800x600
Sensitivity - Up to 0.1Lux
Night Boost Mode - Yes
VNIR Modes - Day/Night
DISPLAY
Internal Display - Full Size: 0.5-Inch Diagonal, Dual-AMOLED, Colour, 800x600
Internal Display Contrast - >10000:1
IMAGE FUSION
Type - Real-time, Electronic
Fused Channels - LWIR + VNIR
Parallax Compensation
Electronic, Adjustable
Heat Signature Opacity Range
User Adjustable: 0% .. 100%
ELECTRONICS, MECHANICAL, ENVIRONMENTAL FEATURES
Accepted Batteries - 4 (Four) AA: Lithium Recommended
Universal Port - Video-Out, Remote Control and External Power (4VDC .. 15VDC)
Video Output Signal - CVBS 1Vpp @ 75 Ohm
Battery Life on 4x AA - Up to 7 Hours
Environmental Protection - Min. IP67, Nitrogen-Purged Housing
Dimensions - 152x132x59mm
Weight - 650 grams
Operating Temperature - -40°C .. +50°C
Storage Temperature - -55°C .. +65°C
Body Material - Hard-Anodized Aluminum
Warranty - 7 Years, Limited
STANDARD EQUIPMENT: WHAT’S IN THE BOX
1. Fusion Goggles
2. Mounting Bracket (Installed: Bayonet or Adjustable Dovetail)
3. Rubber Eyecups (Installed on the device) + Spares
4. Protective Lens Covers (Installed on the device)
5. USB Power Cable (5-pin to USB)
6. Video-Out Cable (5-pin to RCA)
7. Quick Swap Battery Containers (AA)
8. Neck Cord
9. Soft Carrying Pouch
10. User Manual
11. 7-Year Warranty with Activation Form
12. Waterproof Hard Carrying Case
13. Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth)
* Batteries not included
