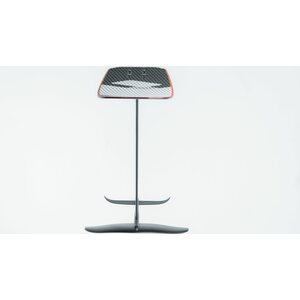

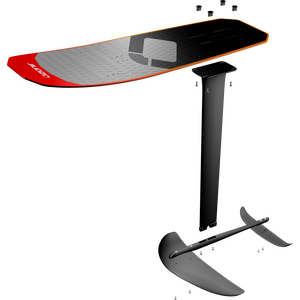

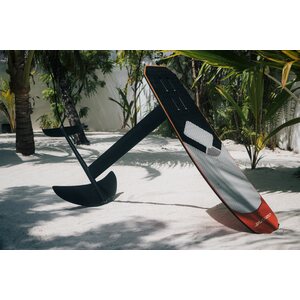

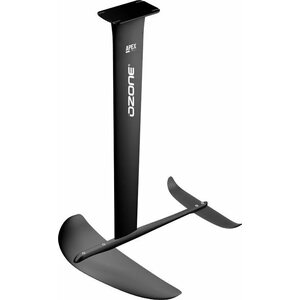

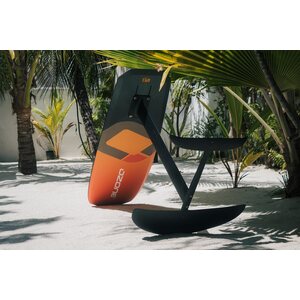

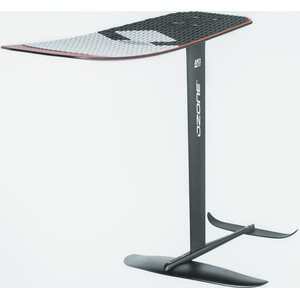

Ozone Apex V1 Kitesurf Hydrofoil Complete with 75cm mast

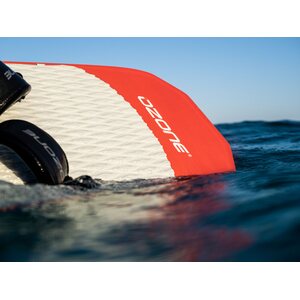

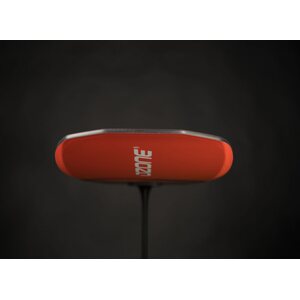

Ozone Apex V1 Kite Foil Board:

The Apex is a lightweight, low volume freeride foil board that is built ultra strong using top of the line materials and construction techniques. It offers endless potential for freeride cruising, carving waves or ripping as fast as you possibly can.

In any conditions the Apex excels. The low volume design allows riders to keep the board on its side for effortless strapless water starts. A forgiving outline and large surface marea makes takeoff and transitions easy, while the high rocker and beveled rails smoothen touchdowns and reduce catching or nosediving.

Includes: Board and Titanium T-Nut Screwset

Hydrofoil and footstraps sold separately.

Features:

• Size: 125x45 cm
• Exceptional Ozone Factory Construction
• Lightweight Low Volume Design
• High Rocker and Beveled Rails
• High Density Foam Core
• Hybrid Carbon and Fiberglass Layup
• Dual Slot Mounting System
• Low Profile Titanium T-Nut Deck Washers
• A-grade 316 Stainless Steel inserts
• EVA Deck Pad
• Apex Straps (sold separately)

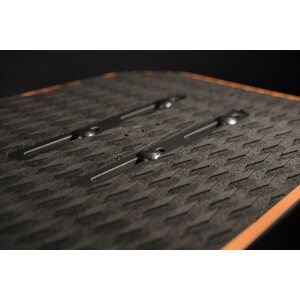

The unique dual slot mounting system with our custom low profile Titanium T-Nut Deck Washers provide an incredibly strong mast to board connection and makes for quick and easy adjustment of the mast position. The T-Nut Deck Washers are compatible with M6 bolts to mount various foils on the Apex board.

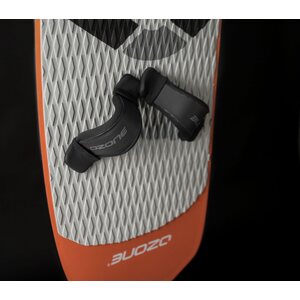

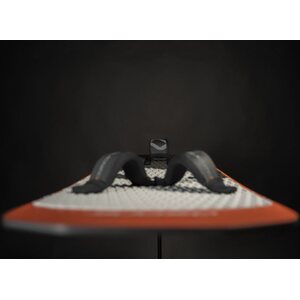

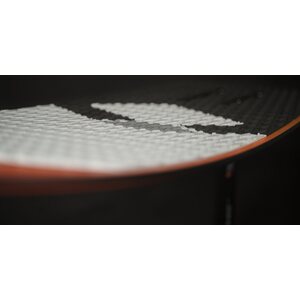

The Apex features a large EVA deckpad providing comfortable grip, it can be ridden strapless or strapped with reinforced M6 inserts offering various stance options. Board straps and hardware are sold separately in two options: 3x standard straps or 1x standard strap and 1x long strap.

The construction is very robust, delivering max feeling and performance while being tough for jumping and traveling. The high-density foam core is laminated with a hybrid carbon and fiberglass layup. Strong top and bottom sheets combined with our advanced sidewall polymer provide excellent impact resistance.

Take the Apex and enjoy the endless possibilities kite foiling has to offer!

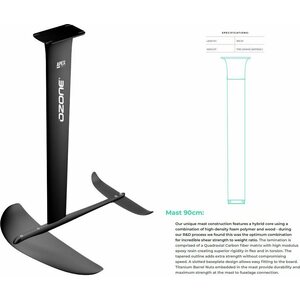

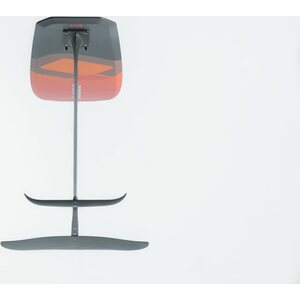

Ozone Hydrofoil Apex V1 Mast 75cm with cover:

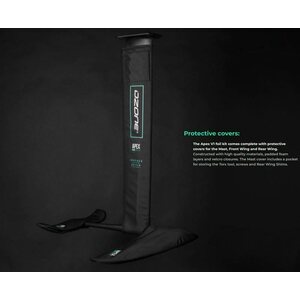

Unique mast construction features a hybrid core using a combination of high-density foam polymer and wood - during our R&D process we found this was the optimum combination for incredible shear strength to weight ratio. The lamination is comprised of a Quadraxial Carbon fiber matrix with high modulus epoxy resin creating superior rigidity in flex and in torsion. The tapered outline adds extra strength without compromising speed. A slotted baseplate design allows easy fitting to the board. Titanium Barrel Nuts embedded in the mast provide durability and maximum strength at the mast to fuselage connection.

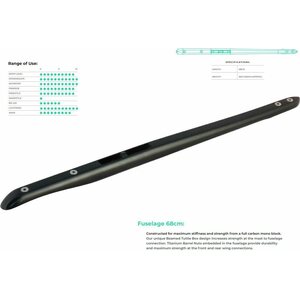

Ozone Hydrofoil Apex V1 Carbon Fuselage 68cm:
Ozone Kitefoil fuselage.

Constructed for maximum stiffness and strength from a full carbon mono block. Our unique Beamed Tuttle Box design increases strength at the mast to fuselage connection. Titanium Barrel Nuts embedded in the fuselage provide durability and maximum strength at the front and rear wing connections.

F68
Length: 68cm

Intermediate to advanced riders looking for ultimate maneuverability. The shorter length slightly decreases pitch stability.

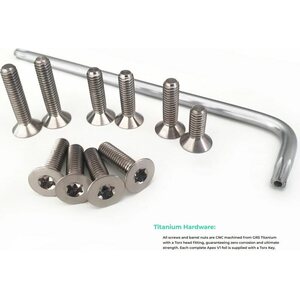

Includes 2x M6 22mm titanium screws

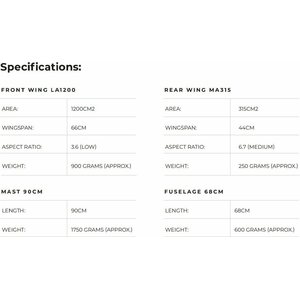

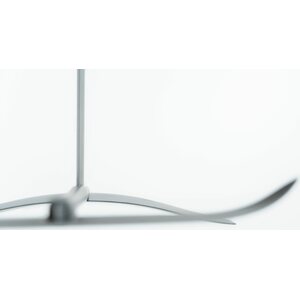

Ozone Hydrofoil Apex V1 Front Wing Low Aspect 1200 with cover:

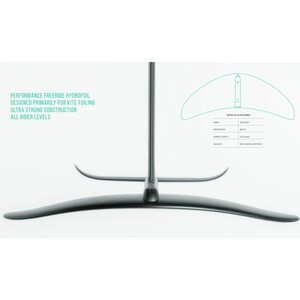

The LA1200 has a low aspect ratio with a generous amount of sweep making the wing alive to ride while being super stable. The self-righting moment produces a huge amount of pitch stability. Hours of CFD allowed us to design a unique section profile with a high lift to drag ratio and late stall point. The LA1200 takes off early, keeps you up foiling at low speeds and can still go relatively fast for a 1200cm2 sized wing - our team riders have pushed it up over 25kts. A carbon fiber layup around a lightweight foam core with a full carbon monolithic centre section provides a light and strong platform.

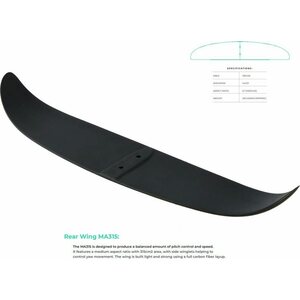

Ozone Hydrofoil Apex V1 Rear Wing Medium Aspect 315 with cover:
The MA315 is designed to produce a balanced amount of pitch control and speed. It features a medium aspect ratio with 315cm2 area, with side winglets helping to control yaw movement. The wing is built light and strong using a full carbon fiber layup.

Ozone Hydrofoil Apex V1 Rear Wing Shim Set:
Rear Wing Shims are for experienced riders looking to adapt the speed, stability and maneuverability to their personal preference. These fit between the Rear Wing and Fuselage to adjust the AOA (angle of attack) of the Rear Wing.

Includes -0.5deg, -1deg and -1.5deg shims.

Ozone Kitesurf/Wingfoil Board straps with screws and washers (3x standard):
3 x straps and screws

Ozone Kitesurf/Wingfoil Board straps with screws and washers (1x standard, 1x long):
