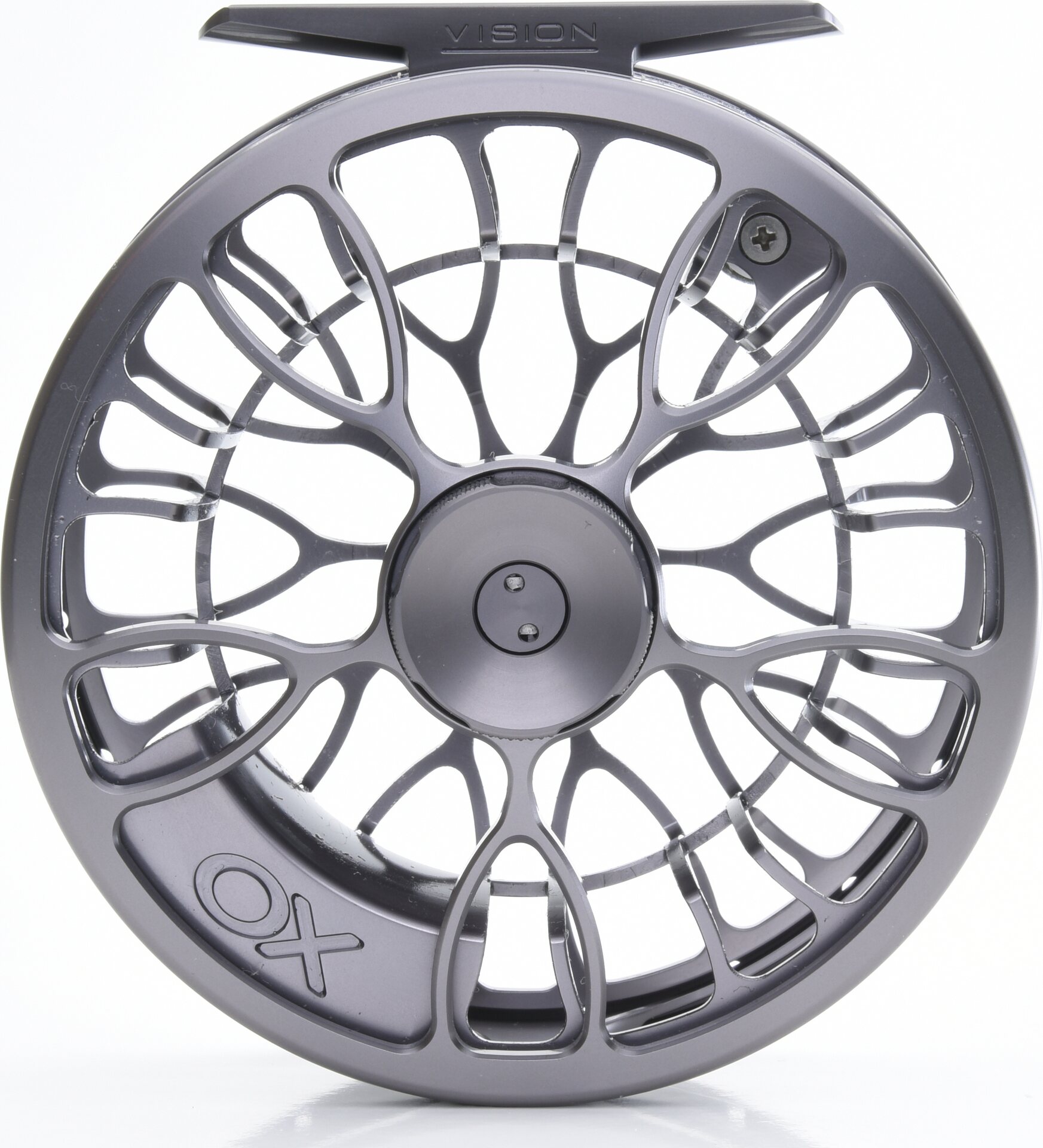

Vision XO Kela

A premium reel requires a world-class brake, plenty of line capacity, a light but still solid construction and last but definitely not least a unique design to clearly separate it from all the other reels on the market. Those were our main targets with XO fly reels.

The 34 class reel is made with an adjustable click brake for the ultimate lightness. 56 and 78 are lightweight, large-arbour reels with well tested sealed disc brake design. Merisuola 78 has the same large-arbour design and brake system as the XO 78 however we have increased the brake power and capacity for this saltwater version of the XO reel.

The BIG BROTHERS have the XO reel’s stunning look fused with XLB reel’s bomb proof & powerfull brake. The brake mechanism has been used for over 20 years with countless huge fish under its belt and now it’s mounted on this sturdy but beautiful reel family. On these reels this proven brake mechanism is sealed even better than in its predecessors. These bigger reels are aimed for heavy salmon and saltwater use. The brake power increases very linearly within 2,5 rounds, giving you impressive 8kg maximum force. The waterproofing utilises axle seals from German Ina and all bearings are from Japan.

89 Additional size to the XO reel family. The 89 is the ideal size reel for heavier single hand rods and Switch rods. With thin backing and monofilament running line it has enough capacity even for smaller double handers. The brake system is a slightly tamed version of the bigger and more brutal 910 & 1012 reels allowing us to make the ideal weight reel for the purpose with big enough maximum brake force. The reel’s frame and spool are machined elegantly thin for weight reduction but the “wine glass look” construction itself makes this reel super rigid.

• Large arbour
• Adjustable click brake on 3-4
• Sealed disc brake on 5-6 & 7-8
• Built in counter balance
• SKF bearing grease

Line	Diameter	Volume	Weight	Capacity	Item #
#3-4	85mm	55cm3	65g	WF4 + 50m 20lb backing	VXOR34
#5-6	95mm	80cm3	123g	WF6 + 50m 20lb backing	VXOR56
#7-8	103mm	110cm3	135g	WF8 + 2000m 36lb backing	VXOR78
#8-9	109mm	114cm3	TBA	WF9 + 130m 30lb backing	VXOR89
#8-9	109mm	114cm3	TBA	WF9 + 130m 30lb backing	VPR89
#9-10	109mm	141cm3	258g	Hybrid 25g + 200m 36lb Dacspun	VXOR910
#10-12	114mm	198cm3	269g	Hybrid 43g + 200m 36lb Dacspun	VXOR1012
