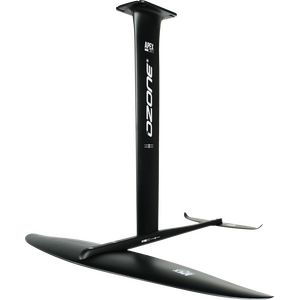

Ozone Hydrofoil Apex V1 Wingfoil MA1500 with covers

Ozone Hydrofoil Apex V1 Wingfoil MA1500 with covers

Ozone Hydrofoil Apex V1 Wingfoil MA1500 with covers
Ozone Hydrofoil Apex V1 Wingfoil MA1500 with covers
Ozone Hydrofoil Apex V1 Wingfoil MA1500 with covers
Ozone Hydrofoil Apex V1 Wingfoil MA1500 with covers

Hinta


Määrä
pakkaus(ta)



Ozone Hydrofoil Apex V1 Mast 75cm with cover

Varastossa
Myymälä (Helsinki)hyllyssä0 kpl
Myymälä (Helsinki)varastossa1 kpl heti
Netistä toimitettavissa heti1 kpl heti

Tilauskoodi
HFAPV1M75
Viivakoodi
5055359335568


Ozone Hydrofoil Apex V1 Carbon Fuselage 78cm with covers

Toimitusaika arviolta 50 - 80 vrk.
Myymälä (Helsinki)hyllyssä0 kpl
Netistä toimitettavissa heti0 kpl

Tilauskoodi
HFAPV1F78
Viivakoodi
5055359336039


Ozone Hydrofoil Apex V1 Front Wing Medium Aspect 1500 with cover

Toimitusaika arviolta 50 - 80 vrk.
Myymälä (Helsinki)hyllyssä0 kpl
Netistä toimitettavissa heti0 kpl

Tilauskoodi
HFAPV1FWMA1500
Viivakoodi
5055359336053


Ozone Hydrofoil Apex V1 Rear Wing Medium Aspect 210 with cover

Toimitusaika arviolta 50 - 80 vrk.
Myymälä (Helsinki)hyllyssä0 kpl
Netistä toimitettavissa heti0 kpl

Tilauskoodi
HFAPV1RWMA210
Tuotteen kuvaus
  • Probably the lightest wingfoil hydrofoil set in the market (<4kg)
  • Ultra strong full carbon construction (incl. fuselage)
  • Performance surface coating
  • All titanium hardware (value approx. 100-150€)
  • Includes all covers (value approx. 100€)
  • Modular approach - compatibility with all Ozone foil range
Ozone Hydrofoil Apex V1 Mast 75cm with cover:
Unique mast construction features a hybrid core using a combination of high-density foam polymer and wood - during our R&D process we found this was the optimum combination for incredible shear strength to weight ratio. The lamination is comprised of a Quadraxial Carbon fiber matrix with high modulus epoxy resin creating superior rigidity in flex and in torsion. The tapered outline adds extra strength without compromising speed. A slotted baseplate design allows easy fitting to the board. Titanium Barrel Nuts embedded in the mast provide durability and maximum strength at the mast to fuselage connection.
Ozone Hydrofoil Apex V1 Carbon Fuselage 78cm with covers:
Constructed for maximum stiffness and strength from a full carbon mono block. Our unique Beamed Tuttle Box design increases strength at the mast to fuselage connection. Titanium Barrel Nuts embedded in the fuselage provide durability and maximum strength at the front and rear wing connections.

F78
Length: 78cm

The ideal length for most riders, conditions and foil sports. Ultra stable in pitch, with a refined balance of pressure between front and back foot positions.

Includes 2x M6 22mm titanium screws
Ozone Hydrofoil Apex V1 Front Wing Medium Aspect 1500 with cover:
  • MA1500
  • Area: 1500cm2
  • Wingspan: 100cm
  • Aspect Ratio: 6.67 (medium)

Includes 2x M6 28mm titanium screws
Ozone Hydrofoil Apex V1 Rear Wing Medium Aspect 210 with cover:
Lightweight and strong construction using a 100% carbon fiber layup.
  • MA210
  • Area: 210cm2
  • Wingspan: 38cm
  • Aspect Ratio: 6.9 (medium)

Käyttötarkoitus
Pump foil, Surf, Wake, Wingsurf
