Indiana Dockstart/Pump Foil 1100P Complete

Indiana Foil Baseplate Alu (incl. Zinc Anode & Screws):
Sisältä Indiana Foil BasePlaten, ruuvit lautaan, sekä T-ura mutterit.

The Indiana aluminum baseplate is milled from hardened T6 6061 aluminum and therefore very stable and stiff. Thanks to the slots, it only weighs 540 grams. The integrated zinc sacrificial anode prevents the oxidation of the aluminum. The open ends of the plates allow the foil to be quickly assembled / disassembled from the board without having to remove the screws completely. The screw distance corresponds to the standard of 9 cm.

Indiana Foil Alu Mast 90cm (with Sleeve):
Kite- and Windfoilers will be most happy with the 90cm Alu Mast. The Indiana mast profile ensures amazing flexional and torsional stiffness. The aluminum masts transmit the control impulses very quickly and directly from the board to the foil.

Indiana Foil Surf Fuselage (incl. Cartridge):
The Surf fuselage is milled from hardened T6 6061 aluminum and has secure grooves to hold the front wings tightly on all four sides. It is tapered towards the back to save weight. The recessed aluminum cartridge provides a rigid and direct connection to the mast. The sacrificial zinc anode reduces the oxidation of the aluminum. The four holes in the fuselage allow for three positions of the stabilizer. The three different angle adapters allow the angle of attack of the stabilizer to be adjusted to 1, 2 or 3 degrees. This means that the stability and agility of the foil can be changed according to personal preference and skill level. The windsurf fuselage can accommodate all Indiana front wings and stabilizers.

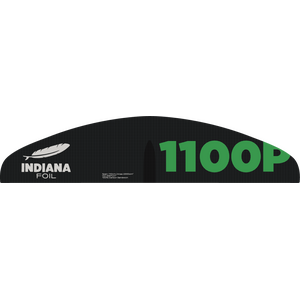

Indiana Foil Front Wing 1100P:

The Indiana Frontwing 1100 Pump is designed for light wind and small waves. It starts to fly from aprox 5 km/h. Even though this wing has a volume of over 4 liters, it is still fast. Dock starts and pumping are very easy, even for heavy riders. The stabilizer options on the new fuselage enable the angle and position of the stabilizer to be adjusted. This means that the stability and flexibility of the foil can be changed according to personal preference and skill level.

Span: 110cm, Area: 2300cm2, Volume: 4267cm3, Weight: 1350g • Material: 100% Carbon, PET Foam, Epoxy • Production Technique: Steel Mold

Includes Wing Sleeve

Indiana Foil Stabilizer 420:
The Indiana Stabilizer 420 is suitable for higher foil speeds. Kitesurfers have fun with it, but even dock start foilers can pump large distances with little effort.

Indiana Foil Set of Stab Angle Adaptors:
The two different angle adapters allow the angle of attack of the stabilizer to be adjusted to 1 or 2 degrees. This means that the stability and agility of the foil can be changed according to personal preference and skill level.

Material: Aluminium
Production Technique: CNC, Anodizing

Indiana Foil Set of Mast / Fuselage Screws:

Sisältää:

• 2 x stainless steel M8 Torx-Screws 30 mm
• 2 x stainless steel M8 Torx-Screws 25 mm
• 4 x stainless steel M8 Torx-Screws 50 mm
