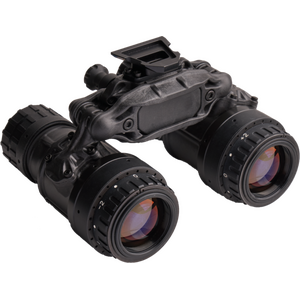

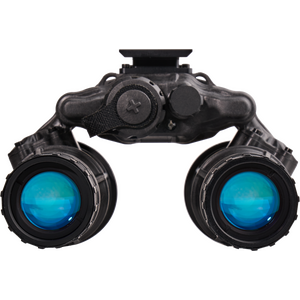

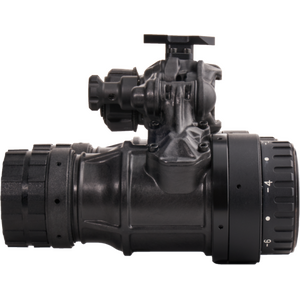

ACT DTNVS-14, Photonis Echo+ Autogated White Phosphor 2000

The DTNVS-14 is equipped with AN/PVS-14 objectives and PVS14 Oculars which are intended for ground use. The DTNVS-14 is ACT’s newest product a compact multi-function Military spec binocular for the most demanding of situations. If you want the best, the DTNVS is a Binocular of choice, with a 25% weight saving verses the competition, adaptive mounting solution and auto on/off in flip up and sideways move, built in IR, compact storage and adaptive mounting solution. The DTNVS-14 utilises standard MX-10160 type tubes in many configurations up to FOM 2400. The DTNVS is built using the latest technology in light metals and Carbon Reinforced Polycarbonate.



Finish Matte Black, Corrosion Resistant
Fibre re-enforces polycarbonate body
Capability Flip-Up On-Off
Side Flip-Up On-Off
Built-in IR LED with “IR-on” indicator in FOV
Low battery indicator in FOV
Waterproof: 20m (66ft) for 2 hours
Corrosion Resistance against salt water
Magnification 1x
Lens System F/1.2
FOV 40°
Range of Focus 0.25 m to ∞
Diopter Adjustment +2 to -6 dpt
Infrared Illuminator Yes
Power Supply 1x CR123
Battery Life Approx. 25 Hours at Room (CR123A)
Dimensions 76 x 105 x 111 mm
Weight 510 g, 470g with DEP Ether eye pieces
Standards Exceeding MIL-STD-810G
