Lumonite D-Moto transducer

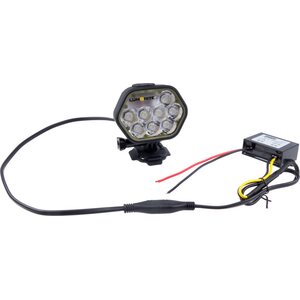

12V transformer suitable for Lumonite DX lamps! Enables fixed installation, e.g. on an ATV, etc. for a 12V system.

Connect the (+) and (-) wires to the power source. A fuse box with fuses can be found directly from the power cable coming from the battery. Connect the lamp to the transformer connection and turn on the lamp - EASY. If necessary, a DX extension cable can be connected between the lamp and the transformer, so that the lamp can be Tuotuo further away from the power source.

Examples of applications:

• ATV's additional lights

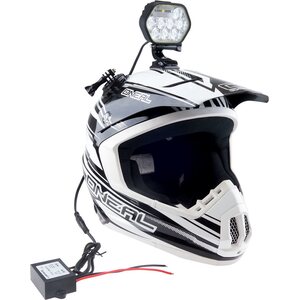

• Enduro / Motocross / motorcycle / snowmobile helmet light, which is powered directly from the vehicle
• Compact additional lights for any vehicle with a 12V system
• A work light for an application where a small size but high power is required from the lamp

Transformer technical data:

• Voltage in: 12 - 17V
• Voltage out: 19V + - 0.2V
• Max. output current: 3A (1 pc DX5000 lamp head at full power)
• High quality transformer
• Cord length: approx. 50 cm + 30 cm
• Waterproof structure cast in plastic
• Warranty: 12 months

Quick guide:

Coupling:

- Red: Plus (+)
- Black: Minus (-)

DX series light head for connection to its own output connector. Fasten the transformer properly to the installation site, e.g. with screws or double-sided tape.

Note! Connecting this product requires basic knowledge of electrical engineering. A couple of reminders:

• Always connect electrical devices behind an appropriately sized fuse
• Use a relay connection if necessary
• Make sure that the thickness of the cables is sufficient
• If you install the device behind an existing fuse, make sure the fuse is the right size and sufficient!
• If you want to install the lamp far from the transformer, use only Lumonite DX series extension cords for the DX series lamp - All similar-looking cables do not have thick enough wires inside.

You can put the feed control behind a button, for example. Use a relay if necessary, if the current capacity of the button/switch is not sufficient for the transformer you have chosen. Tip: You can also take control from the vehicle's own lights.
