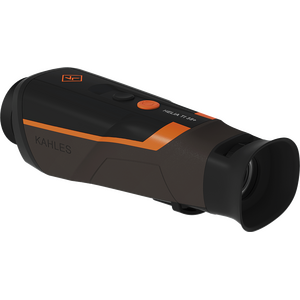

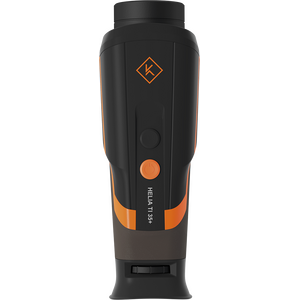

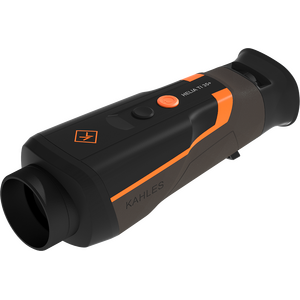

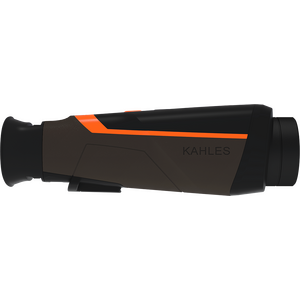

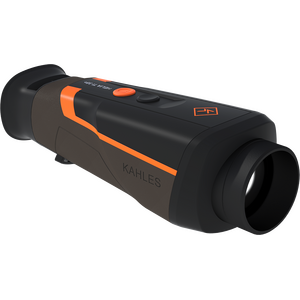

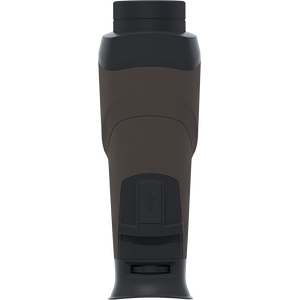

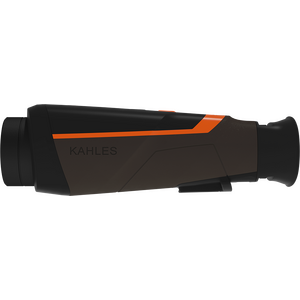

Kahles Helia Ti 35+

In every detail, HELIA TI 35+ thermal imaging devices are radically optimized for hunting. They combine intuitive, user-friendly handling with excellent imaging performance. Not a button too many and none in the wrong place. Uncompromisingly simple and quick detection at day and night.

The TI+ models are equipped with latest generation high-resolution 12µm VGA sensors. 3x more pixels* and 40% more sensitivity* (NETD <20 mK) produce a high-contrast image with unsurpassed detail recognition.

Ultra-high imaging and detail resolution together with 2x optical magnification are ideal to reliably identify game and relevant details.

• Radically simple and intuitive – with only 2 control buttons
• High-contrast image with unsurpassed detail recognition
• Exceptionally large field of view of up to 44m/100m
• Intelligent automatic switch-on/-off display with tilt and motion sensor
• Ready to use in just a few seconds
• Drop-proof, waterproof and ready for use in extreme temperatures
• Long battery life – even at -20 degrees Celsius
• Ergonomic, roll-proof design and perfectly placed controls

Technical Features

HELIA	TI 35+
Objective lens	35 mm, F1.0
Sensor resolution (pixels)	640x512; 12 μm
Sensor type	Vanadium oxide uncooled focal plane arrays
Thermal sensitivity - NETD (mK)	<20
Display resolution (pixels)	1.024×768
Display frame rate (Hz)	50
Display type	OLED
Field of view (°)	12,5×10,0
Field of view (m/100m)	22
Field of view (ft/100yds)	66
Field of view apparent (°)	25x18,7
Optical magnification	2,0
Digital zoom	1x, 2x, 4x, 8x
Detection (m)*	2479
Recognition (m)**	826
Identification (m)***	413
Focus	Manual
Diopter compensation (dpt)	+4/-4
Battery type	Rechargeable lithium-ion
Battery life (h)	up to 6
Operating temperature (°C)	-20 / +50
Length x Width x Height (mm)	198 × 68 × 63
Weight (g)	430
Waterproof	Yes
Automaticlight (automatic display switch on-/-off)	Yes
Colour modes	White Hot, Black Hot, Red Only

*      Detection distance 1,7 x 0,5 / 2px (m)
**    Recognition distance 1,7 x 0,5 / 6px (m)
***  Identification distance 1,7 x 0,5 / 12px (m)
