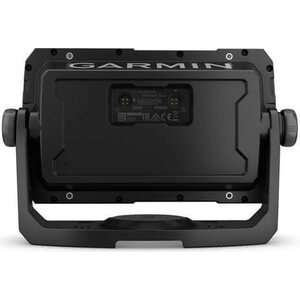

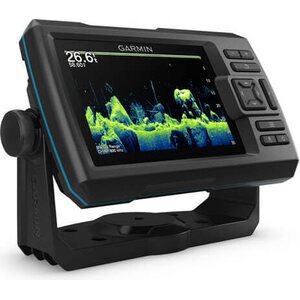

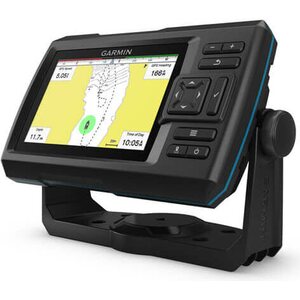

See fish and structure in maximum detail when you pick your display colour, your location and your sonar for your day on the water with the STRIKER Vivid 5cv fishfinder with transducer.
Choose from 7 new vivid colour options to see fish and structure in maximum contrast and clarity on your 5-inch fishfinder. Use the included GT20 transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar. To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS. Nobody knows the waters you fish better than you. With the STRIKER Vivid 5cv fishfinder, you can store up to 2 million acres of maps with 1-foot contours. The STRIKER Vivid 5cv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.
General | |
Display resolution | 800 x 480 pixels |
Display type | WVGA colour |
Physical dimensions | 7.4’’ x 4.5’’ x 2.1’’ (18.8 x 11.6 x 5.4 cm) |
Weight | 1.0 lb (0.5 kg) |
Water raiting | IPX7 |
Transmit power | 500 W (RMS) |
Sonar features & specifications | |
Dual-frequency (50/200 kHz) sonar capable | Yes |
Dual-beam (77/200 kHz) sonar capable | Yes |
Frequencies supported | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz |
Bottom lock (shows return from the bottom up) | Yes |
Water temperature log and graph | Yes |
Fishfinder features | |
Split-screen zoom | Yes |
Ultrascroll® (displays fish targets at higher boat speeds) | Yes |
Fish symbol id (helps identify fish targets) | Yes |
Autogain technology (minimises clutter, maximises targets) | Yes |
Adjustable depth line (measures depth of underwater objects) | Yes |
A-scope (real time display of fish passing through transducer beam) | Yes |
Water temperature sensor included | Yes |
Additional features
What's in the box
