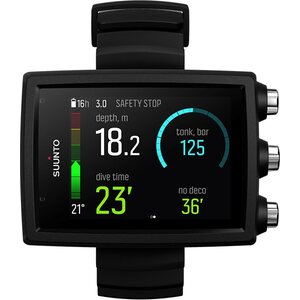

A COMPACT DIVE COMPUTER WITH A CLEAR COLOR SCREEN AND CUSTOMIZABLE FEATURES
The compact Suunto EON Core is a great dive companion whether you are just beginning diving or an active diver exploring new depths. The key details of your dive are easy to read from the clear color display with large, prominent digits, This fully-featured and customizable dive computer is your reliable partner no matter if you’re exploring shipwrecks or admiring the colorful marine life.
EASY TO READ
- High contrast color screen with large numbers
- Always-on LED backlight
- Visually intuitive, consistent presentation
- Classic, graphical and prominent view styles
COMPACT AND COMFORTABLE
- Lightweight
- Rechargeable battery (10-20 hours of dive time with one charge)

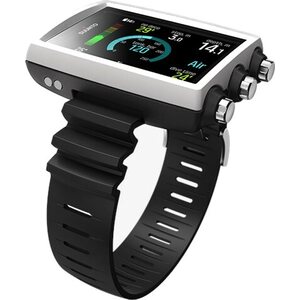

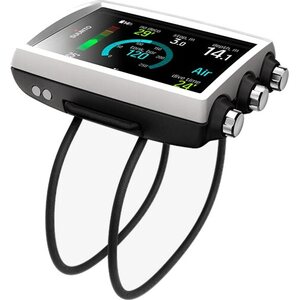

- Use with strap or bungee (bungee sold separately)
- Simple and easy-to-use interface
- Flip display
GROWS WITH YOU
- Customize features with Suunto CustomDisplay™ in Suunto DM5
- User-updatable software

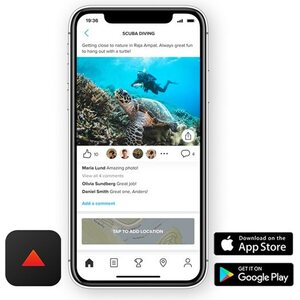

CONNECT AND TRANSFER
FOR ALL DIVING
- Gauge/Air/Nitrox/Trimix/CCR (fixed point)
- Suunto Fused™ RGBM for maximizing dive time
- No-decompression dive planner
- Tilt compensated 3D digital compass
- Guaranteed to 80 m depth
WHAT'S IN THE BOX?
Suunto EON Core, USB Cable, Quick Guide, Safety leaflet, Display scratch guard sticker, International warranty leaflet
GENERAL
Bezel material:
|
Composite
|
Glass material:
|
Mineral crystal
|
Case material:
|
Reinforced composite
|

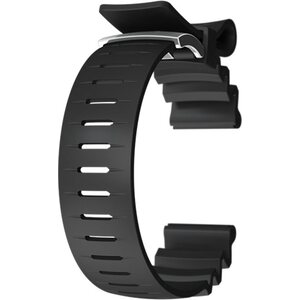

Strap material:
|
Elastomer
|
Weight
|
154 g / 5.43 oz
|
Water resistance
|
80 m (ISO 6425, EN 13319)
|
Battery life in time mode
|
2 months
|
Firmware upgradable
|
|
Battery type
|
rechargeable lithium-ion
|
Time, date
|
|
Stopwatch timer
|
|
Languages
|
EN, CS, DA, DE, ES, FI, FR, IT, JA, KO, NL, NO, PL, PT, RU, SV, ZH
|
Backlight
|
LED
|
Configurable backlight
|
|
Flip display
|
|
Display type
|
color TFT
|
Display resolution
|
320 x 240
|
Battery indicator
|
icon + dive hours remaining
|
Metric and imperial units
|
|
CONNECTIVITY
Smartphone compatibility
|
iPhone, Android
|
Connectivity (between devices)
|
inductive, Bluetooth Smart
|
Compatible with Suunto Movescount
|
|
Compatible with Suunto Movescount App
|
|
Compatible with DM5
|
|
Log transfer
|
Wireless / USB cable
|
Compatible with Suunto Movescount
|
|
COMPASS
Digital compass
|
|
Tilt compensation
|
up to 45°
|
Declination correction
|
|
Direction scale
|
degrees
|
Needle
|
compass rose
|
Globally balanced
|
|
Bearing lock with direction indicator
|
|
Compass accuracy
|
+/- 10°
|
Compass resolution
|
1°
|
PHYSICAL SPECIFICATIONS
Operating temperature
|
0° C to +40° C / +32° F to +104° F
|
Storage temperature
|
-20 ° C to +50 ° C / -4° F to +122° F
|
Recommended charging temperature
|
0° C to +45° C / +32° F to +113° F
|
DIVING FUNCTIONS
BASIC
Maximum operating depth (EN 13319)
|
80m
|
Rebreather (CCR), fixed point
|
|
Trimix (mixed gas)
|
|
Nitrox (and air)
|
|
Gauge
|
|
Dive time
|
0 to 999 min
|
Surface time
|
0 to 100 h
|
No fly time
|
|
Safety Stop
|
|
Deep Stop
|
|
Ascent time display
|
0 - 999 min ( > after 999)
|
CNS/OTU (OLF) calculation
|
|
Wireless air integration
|
optional (up to 10 different tanks with Suunto Tank POD)
|
Gas time
|
|
Gas consumption (real-time)
|
|
Decompression model
|
SUUNTO FUSED RGBM
|
Custom displays
|
4 per dive mode
|
Personal adjustment
|
from -2 to 2
|
Altitude adjustment
|
0 - 300 m / 300 -1500 m / 1500 - 3000 m
|
Gases
|
up to 10 gases (Oxygen 5 - 99% / Helium 0 -95%)
|
Gas max pO2
|
manual 0.5 - 1.6 / fixed 1.6
|
Gas switching
|
|
Timer
|
|
No-decompression planner
|
|
Logbook memory
|
200 h
|
Logbook bookmarks
|
|
Logbook sampling rates
|
10 s
|
Dive History
|
lifetime
|
Visual style
|
Classic/Graphical/Prominent
|
DIVE ALARMS AND NOTIFICATIONS
Too fast ascent
|
|
Decompression ceiling violation
|
|
Deepstop violation
|
|
CNS/OTU (OLF) 80% / 100%
|
|
Switch gas (better gas is available)
|
|
Diluent switched automatically
|
|
Diluent high pO2
|
|
Diluent low pO2
|
|
ICD warning
|
|
Dive time
|
|
Gas time
|
|
High pO2 (hyperoxic)
|
|
Low pO2 (hypoxic)
|
|
Maximum depth
|
|
Tank pressure
|
|
REBREATHER
Diluents
|
up to 10 diluents (Oxygen 5 - 99% / Helium 0 - 95%)
|
Bailout
|
|
High/low setpoints
|
|
Custom setpoint
|
|
Manual/automatic setpoint switching
|
|
OUTDOOR FUNCTIONS
WEATHER
Temperature
|
|
Temperature display range
|
-20° C to +50° C (+/- 2° C) / -9° C to +122° F (+/- 3.6° F)
|
Temperature resolution
|
1° C / 1.5° F
|
The approximate size of the packed product or the sales package is 130 x 90 x 130 mm.
