Humminbird Helix 7 Chirp DI GPS G2N

Availability
This product could not be added to the shopping cart, because it is not for sale at the moment or for some other reason.

Product description

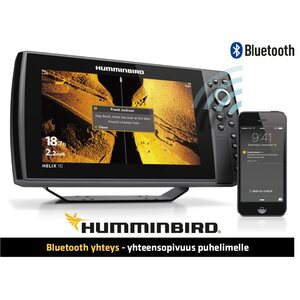

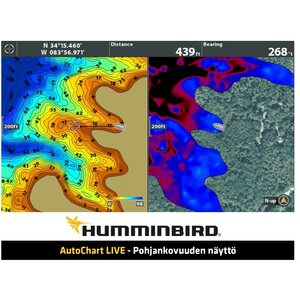

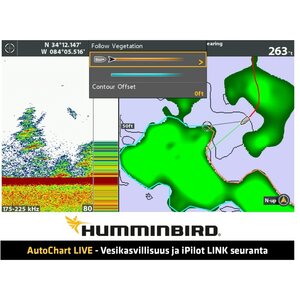

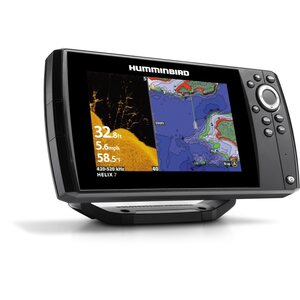

The HELIX 7 CHIRP DI GPS G2N features a large 7" display with LED backlight, CHIRP Down Imaging and CHIRP 2D sonar. Includes GPS chartplotting with built-in Bluetooth, Ethernet networking capabilities, AutoChart Live with depth, vegetation and bottom hardness mapping.

*Optional 50 kHz transducers available for extreme deepwater use and to obtain 1000 watts.

360 Imaging - We have you surrounded. 360 Imaging allows you to isolate your sweep, see 5 preset views or see all around you.

SPECS

Display Size - Diagonal:7"
Display Pixel Matrix:800H X 480V
Display Type:Color TFT
Display Colors Grayscale:16-bit
Sonar Standard:CHIRP Down Imaging/CHIRP Digital Sonar, DualBeam PLUS
Standard Sonar Coverage:16°, 28°, 45° & 75° @ -10db
Standard Sonar Frequency:200/455/800 kHz
Sonar Optional:50kHz, 83kHz & 50/Low Airmar CHIRP
Target Separation:2.5"
Power Output RMS:500 Watts*
Power Output Peak to Peak:4000 Watts*
Depth Capability:350 ft (DI), 600 ft, 2500 ft*
Temperature:Built In Transducer
Speed:GPS Speed Included
Backlight:LED
Unit Size - Gimbal Mount:10.54"W x 5.44"H x 1.13"D
Mount A Type:Gimbal Mount
Unit Size - Indash Mount:10.54"W x 5.80"H x 3.68"D
Mount B Unit Size2:Optional In-Dash
Mounting Options:Gimbal or Optional In-Dash
Transducer Standard:XNT 9 DI T
Transducer Mounting:Transom
Power Input:10.8-20 VDC
Power Draw:900 mA
GPS Receiver:Included
GPS Tracking:Included
GPS Chartplotting:Included
Waypoints, Routes, Tracks/Points:2,500, 50, 50/20,000
Humminbird Mapping:Optional
Navionics+:Optional
Navionics Platinum+:Optional
Platinum Capable:Optional
360 Imaging:Optional
i-Pilot Link:Optional
HD Radar:Optional
NMEA 2000:Optional
5 Port Expansion Module:Optional
Precision GPS:Included
Heading Sensor GPS:Optional
PC Connect:Optional
External GPS Receiver:Not Supported
AIS Compatability:Optional
SwitchFire Sonar:Included
Screen Snap Shot:Included
Sonar Recording:Included
Humminbird PC:Included
Upgradable Internal Software:Included
Split Screen Zoom:Included
Split Screen Bottom Lock:Included
3D Chart View:Included
Large Digits View:Included
Wide/Narrow Cone Split Screen:Included
Custom View Selections:Included
Custom Digital Readout:Included
View Preset Keys:Not Supported
Temperature Graph:Not Included
Temperature Alarm:Included
Freeze Frame:Included
Instant Image Update:Included
Mark Structure on Sonar:Included
Selective Fish ID+:Included
Real Time Sonar:Included
Triplog:Included
X-Press Menu System:Included
Card Reader Available:Yes
# Card Slots:1
