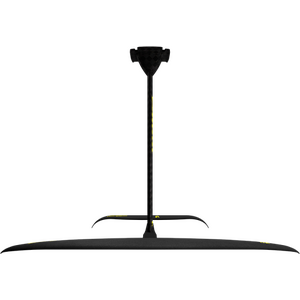

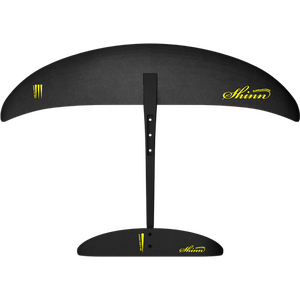

Shinn Suprahydro Multi Directional Carbon 1650 Set

Shinn Suprahydro Multi Directional Carbon 1650 Set

Shinn Suprahydro Multi Directional Carbon 1650 Set
Shinn Suprahydro Multi Directional Carbon 1650 Set

Campaign price
1 439,10 + delivery costs
Offer ends in
Normal price 1 599,00 €
Incl. VAT 24 %


Quantity
pc



Size
82 cm carbon mast


Length
Surf Fuselage V1 735


Other feature
S20.2 MD Carbon Stabiliser


Size: 82 cm carbon mast
Length: Surf Fuselage V1 735
Other feature: S20.2 MD Carbon Stabiliser

Store (Helsinki)on-shelf0 pcs
Available in the webstore0 pcs

Product code
SMDC1650-SET

The maximum amount you can order is the same as the number of articles in stock and on the way to us.
Availability
Approximately 30 - 90 day(s) from the order. The reliability of the estimation is good.

Detailed availability
Notify me when this product is in stock again


Product description
Front Wing
  • Span                                      100cm
  • Nominal Surface Area        1650cm
  • Aspect ratio                          6.4
  • Intended Use                        Riders <85kg light wind winging, SUP foil, Surf foil small waves, Pumping


Suprahydro

Lighter, Stiffer and supremely efficient the Suprahydro displays quite probably the best combination of glide and carve on the market today. A truly versatile, modern, modular hydrofoil that not only blends but outshines the performance characteristics of both traditional low and high aspect ratio wings.

Our in-depth knowledge and experience in the fields of composite design and manufacturing has created one of, if not the stiffest and lightest foils on the market today but it’s the constant dedication to testing in real world conditions that brings a performance benefit to this technological advantage.

A complete foil system with 8 mast options (both carbon and aluminium), 5 front wings, 2 fuselage lengths and 2 stabilisers we can offer over 300 combinations to ensure that YOUR Suprahydro is perfectly adapted for YOUR needs whether that is Winging, Surf, SUP or Wake foiling.

Multi Directional Carbon Foil

A brand new technology, the MD Carbon foil features our carbon mast, carbon wing and carbon stabiliser combined with a CNC shaped 6061 aircraft grade aluminium fuselage. Utilizing recycled Multi-direction carbon fibre matt built around a precision shaped, CNC cut, high density EPS foam core both wing and stabiliser achieve un-rivalled weight and rigidity which when combined with our HM spread-tow carbon mast delivers a light and stiff foil at a price normally associated with Aluminium mast hydrofoils. All the carbon parts are supplied in padded covers and inside a padded travel case.

Performance Highlights

  • Exceedingly low parasitic drag levels allow for gliding with even the smallest of swells
  • Full rail Carve feeling made even more radical through the use of the 580cm fuselage
  • Excellent low speed take-off with a progressive lift that won’t surprise you
  • High Stall angle ideal for pumping and low speed manoeuvres
  • Enhanced pitch stability increases rider confidence and ease of control over a range of speeds

Technology Highlights

  • Extreme rigidity in the wing/fusleage connection makes the Suprahydro re-active and stable under foot
  • Modular design allows over 300 different mast/fuselage/wing/stab combinations with the minimum of easy to loose, hard to understand adaptors.
  • Ultra-light composite wing technology using CNC cut EPS foam cores
  • High-Modulus carbon masts combine light weight with both lateral and torsional stiffness
  • Carbon or Aluminium masts with 9 lengths available
  • Adjustable mast position on the fuselage to suit every board and riding style
  • Stabiliser shims allow the rider to trip the lift depending on their weight, style and riding conditions
  • 2 stabiliser sizes allow for rider weight optimization (S20.1 >85kg and S20.2 <85kg)
  • 2 fuselage lengths for versatility (735 for glide, pumping and stability, 580 for tighter radius more radical turns)

The approximate size of the packed product or the sales package is 1200 x 400 x 200 mm.


Use
Pump foil, Surf, Wingsurf


Weight
15 kg(Includes the weight of the sales package if present)


Warranty
24 month(s)


Country of origin
Poland
